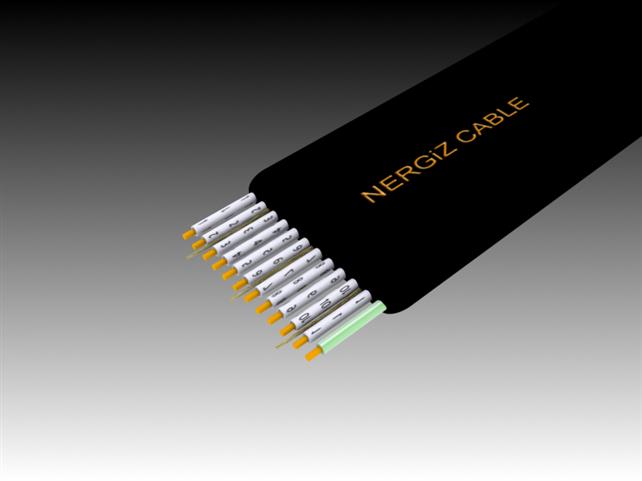

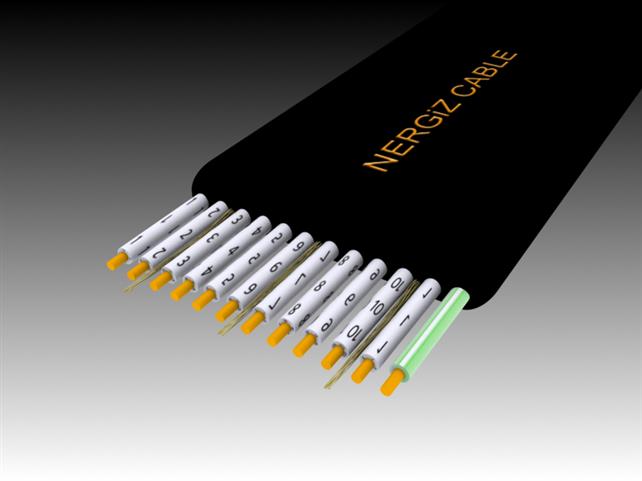

Flat Flexible Cable

Flexible flat cable used for control connections for the elevator. Flexible flat cable used for the projects which not exceed 1.6 m/s travel speed and 35 meter free hanging length with -40 - 0 C and 60 - 0 C environment temperature.

Although it may be used for short distances, steel core supported cable with 24 conductor can be also used until 35 meter free hanging length projects.

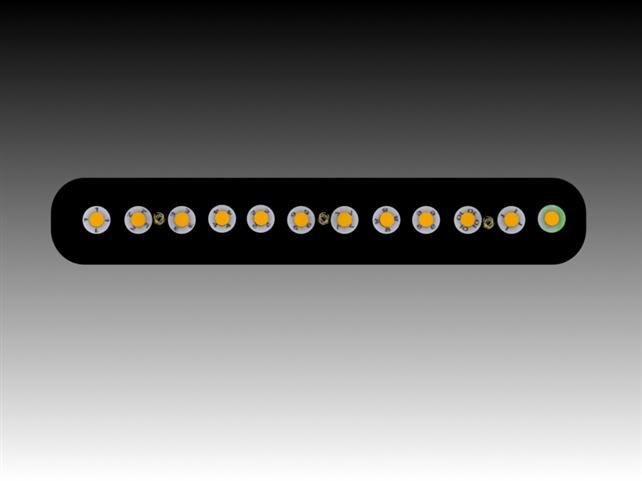

Dimensions
Nominal Cross-Section	Width (mm)	Height (mm)	Weight (gr/m)
6x0.75	19	4.2	142
12x0.75	33.8	4.2	284
16x0.75	44.4	4.2	366
18x0.75	50.5	4.2	415
20x0.75	55	4.2	463
24x0.75	65.6	4.2	550
24x0.75 *	70.4	4.2	642
12x1	36.2	4.4	330
16x1	47.6	4.4	445
20x1	59	4.4	545
24x1	70.4	4.4	620
24x1 *	75.6	4.4	740

This cable is produced in accordance to TS EN 50214.

Flexible Flat Cable H05VVH6-F Features

Insulation Type	Conductor PVC/D
Outer Sheath	PVC / STS
Rated Voltage	300/500 V Cross Section 0.75 mm² - 450/750 V Cross Section 1 mm²
Fire Conditions	IEC 332-1
Test Voltage	1500 V for U/U 300/500 V - 2500 V for U/U 450/750 V
Identification	Identification by Numbers
Short Circuit Temperature	160 °C
Bending Radius	10 x Overall Diameter
Resistance against water	IEC 811-1
Service Temperature	70 °C
Normalized	IEC 502
Flexible Conductor	Class 5 IEC 228
Ground Conductor	IEC 502

According to customer’s request, all kinds of flat flexible cable are produced as halogen free (flame retardant low smoke emission) instead of PVC.
